$1,439.99

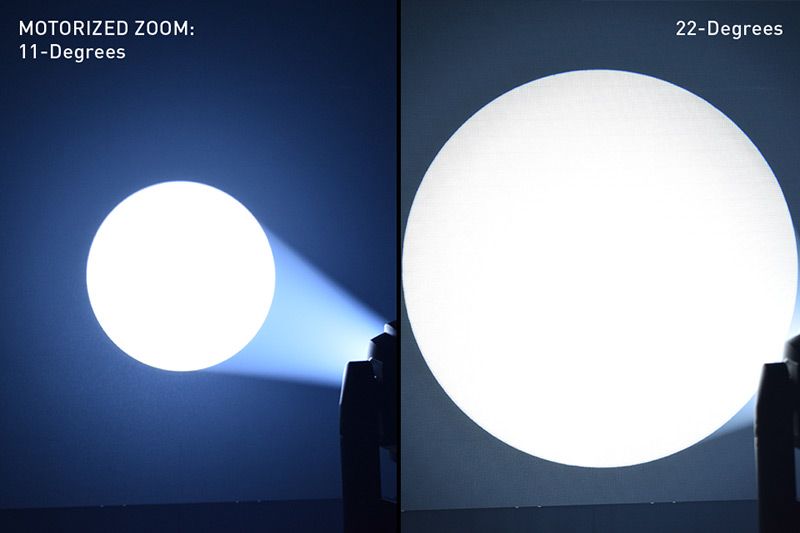

The Focus Spot 4Z is powered by a brilliant 200W cool white LED engine and is equipped with motorized focus and zoom (11 ~ 22-degree zoom). Its designed for temporary live events and fixed installations in nightclub, stages or churches. It is professionally fit with one GOBO wheel with 6 rotating/replaceable GOBOS, 8 vibrant colors plus white, and 2 prism wheels (one 5-facet linear and one 6-facet circular).
The Focus Spot 4Z has locking power In/Out connections to daisy chain the power, as well as 3-pin DMX In/Out to transmit a DMX signal from one fixture to the next. There is a USB firmware update port built-in plus advanced control options such as: 16-bit fin pan and tilt, multiple DMX control modes, and 6 different dimming options. The Focus Spot 4Z offers a robust light output in a light weight, compact foot print (18-inch high and one 23 pounds).

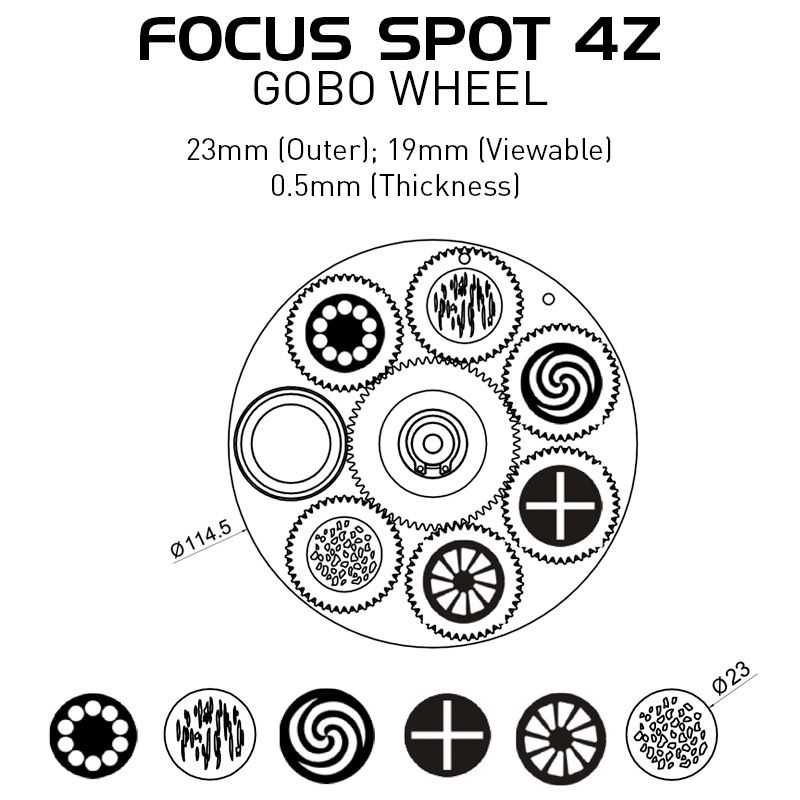

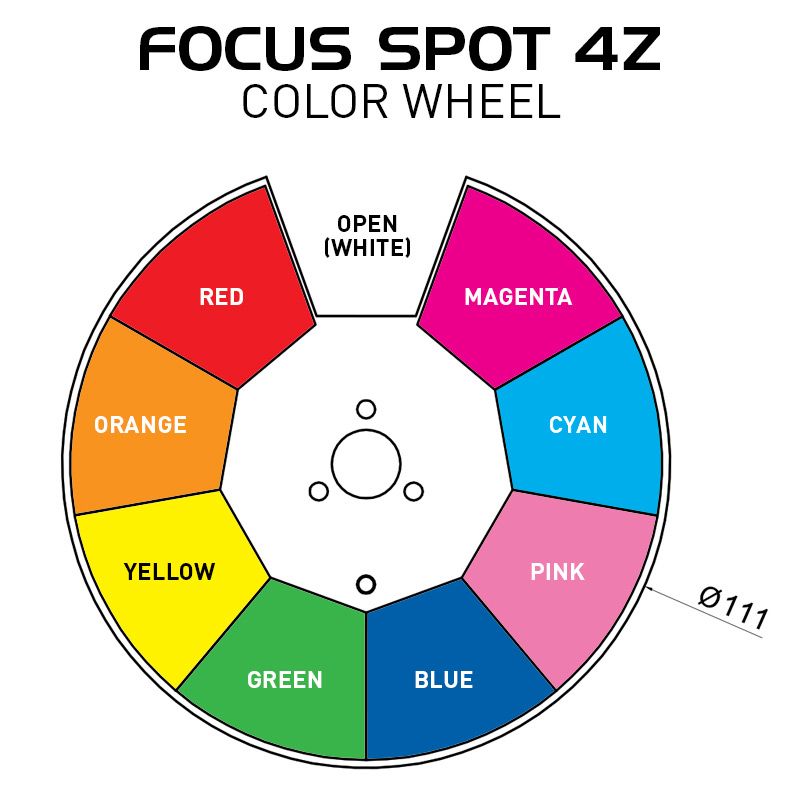

Light Source: • 200W Cool White LED Engine (50,000 hr.) Features: • Motorized Focus • Motorized Zoom: 11 ~ 22-degrees plus 16-bit Fine Zoom • 2 Prism FX: Rotating 5-facet Linear & rotating 6-facet Circular • 0-100% smooth dimming • Various strobe speeds • USB firmware update port • 2 cooling fans Color Wheel: • 8 dichroic colors + white GOBO Wheel: • 6 aluminum GOBOs + open • All GOBOs removable & rotatable • GOBO Shake Effect • GOBO size: 22.5mm (outer); 19mm (viewable); 0.5-2mm (thickness) Prism Wheel: • Prism Wheel 1: Rotatable 5-facet Linear • Prism Wheel 2: Rotatable 6-facet Circular • Prism Indexing Control: • 3 DMX Channel Modes: 16/18/22 Channels • Color LCD display with 6-button function menu • Data In/Out: 3-pin DMX • Power In/Out: Locking power In/Out connections (Daisy chain 4 units @ 120V; 10 units @ 240V) • Control Mode: DMX512 or internal programs • 6 Dimming Curve Modes: Standard, Stage, TV, Architectural, Theatre, Stage 2 • 0-100% smooth dimming • Various strobe speeds • USB firmware update port • With Wired Digital Communication Network Pan/Tilt: • Pan: 540 & 630 degrees • Tilt: 270 degrees Dimensions & Weight: • Dimension: 7.15 (L)” x 10.97” (W) x 18” (H) / 181.5 x 278.6 x 457.4mm • Weight: 23 lbs. / 10 kg. What’s Included: • Omega Bracket • 6 ft/3M Locking power to Edison cable • Safety Cable Rating/Approvals: • cETLus approved (Control #4010765)
Category: American DJ, Intelligent Lighting, L.E.D. Lighting, LED Intelligent and Moving Head, Moving Heads
